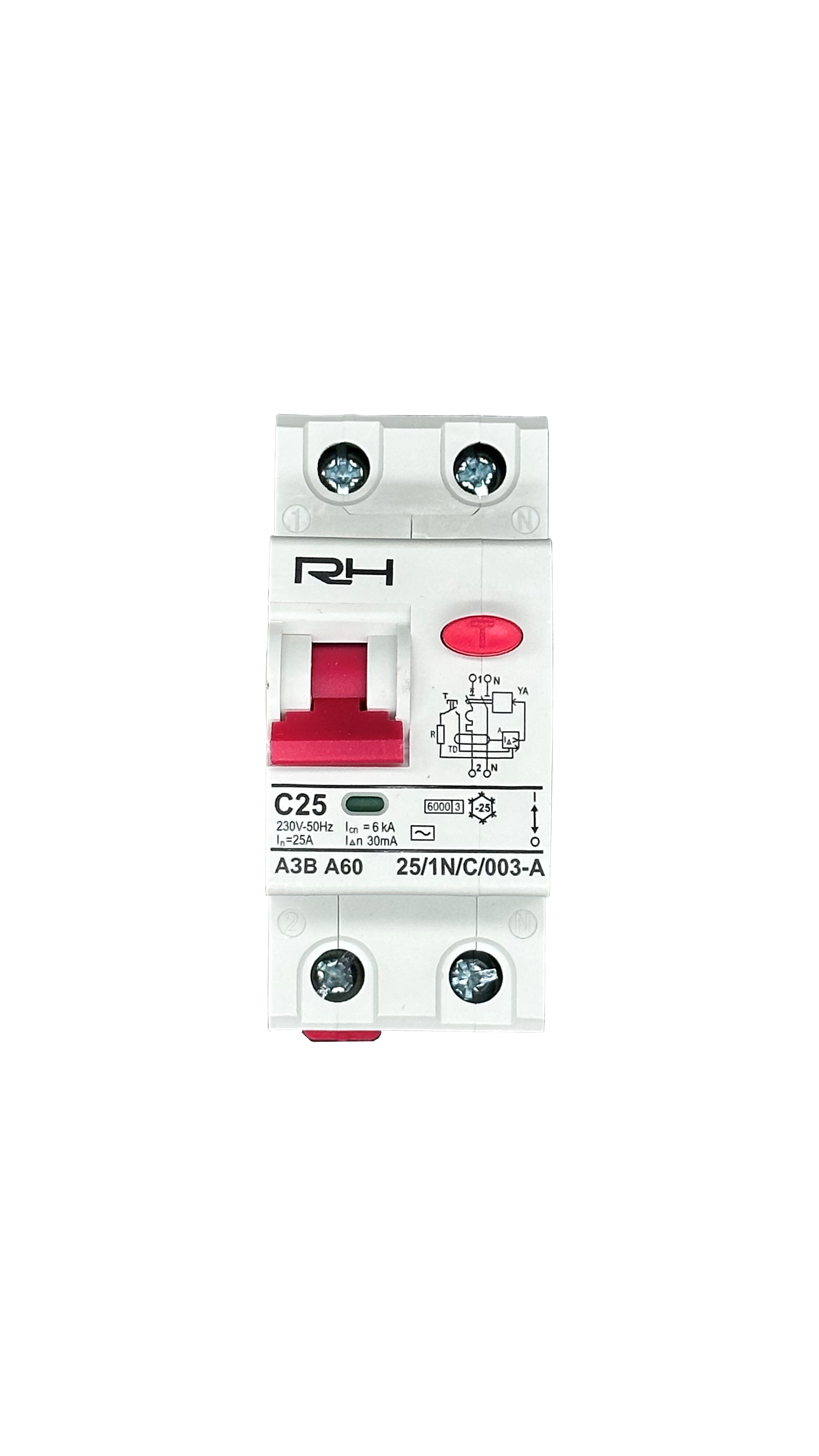

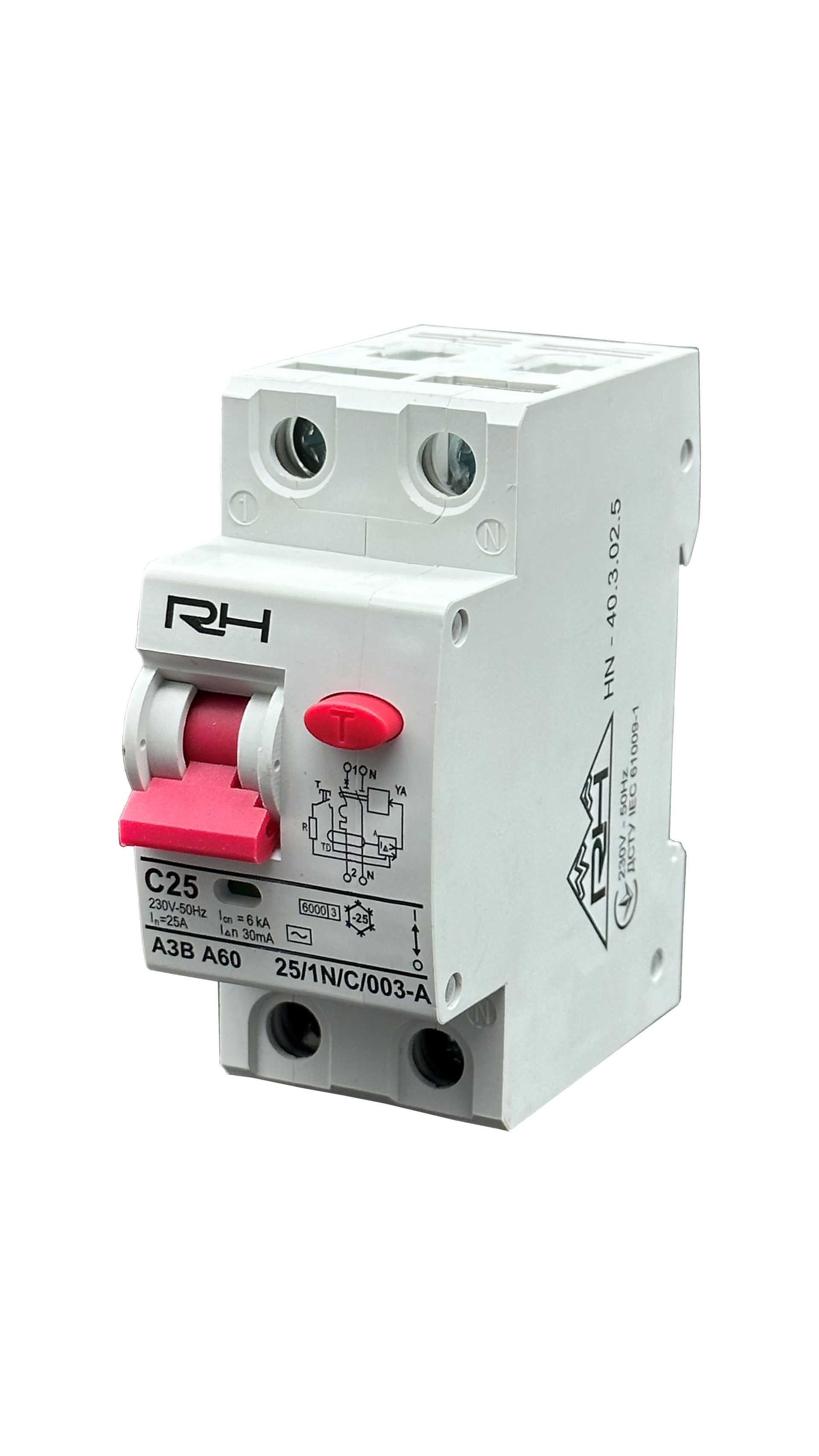

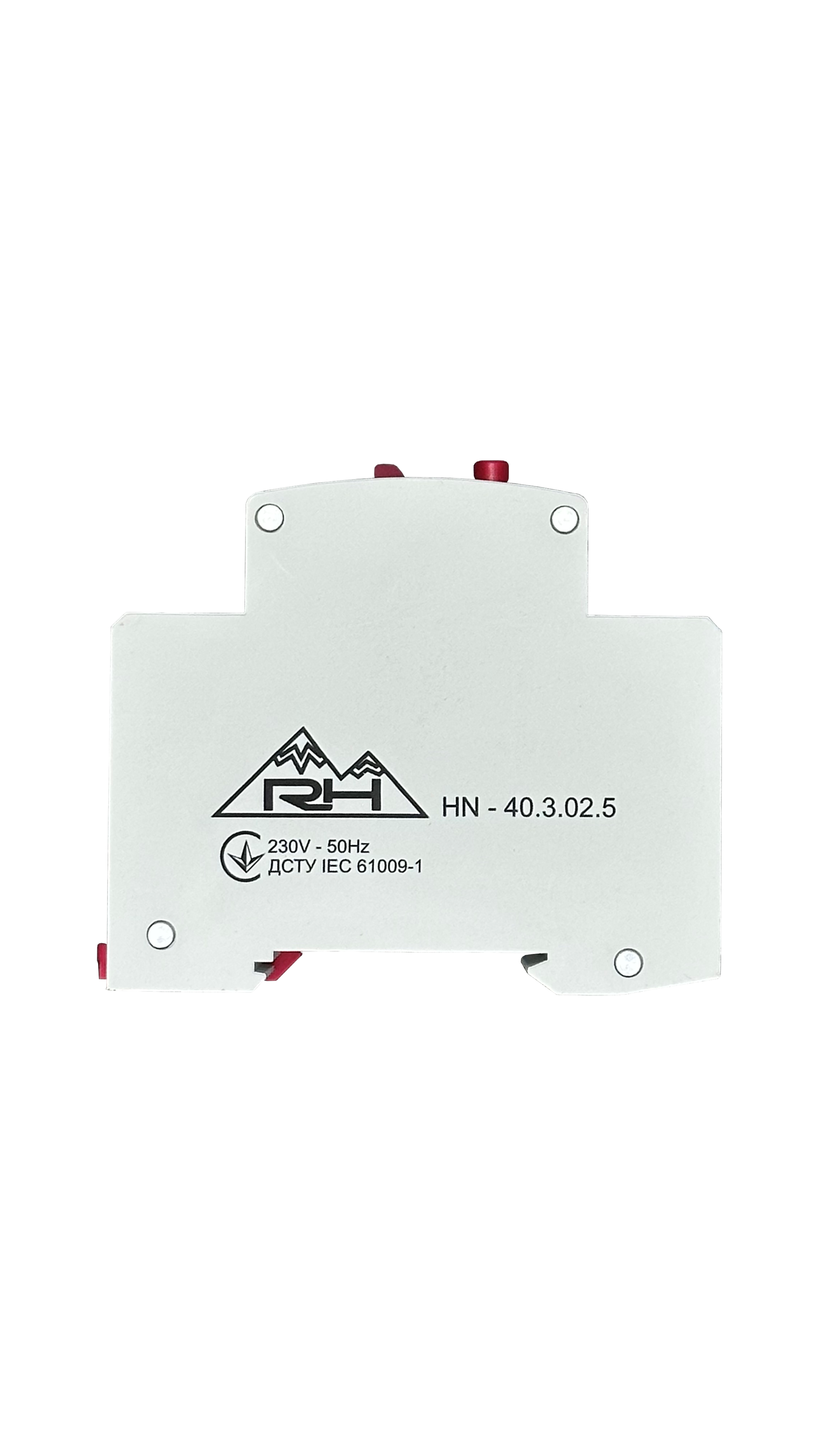

Protective disconnection relay RH RCD 2P 25A 30mA HN-402025
SKU
29297
Manufacturer
Right Hausen
451.72 ₴ / Pieces
Characterisctics
SKU
29297
Warranty
1 Year
Nominal current, In
25А
Rated differential current, I∆,
30 mA
Nominal operating voltage, Ue
230 V
Number of poles
IP+N
Nominal breaking capacity, Icn
6000 A
Disconnection characteristic
A
Trip characteristic at I∆
AC
Shutdown time at I∆
≤30 m. sec.
Installation type
Din-rail
Type
Modular
Release type
Electromagnetic
Degree of dust protection
IP20
Manufacturer
Right Hausen
Nominal frequency f - 50 Hz;
Nominal insulation voltage Ui - 500 V;
Nominal impulse voltage Uimp - 4000 V;
Electrical wear resistance - 9,000 cycles;
Mechanical wear resistance - 12,000 cycles;
The maximum cross-section of the cable for connection is 16 mm2;
Degree of environmental pollution - 2;
Temperature coefficient - 1.02%;
Working temperature - (-10 +40) ⁰С.
