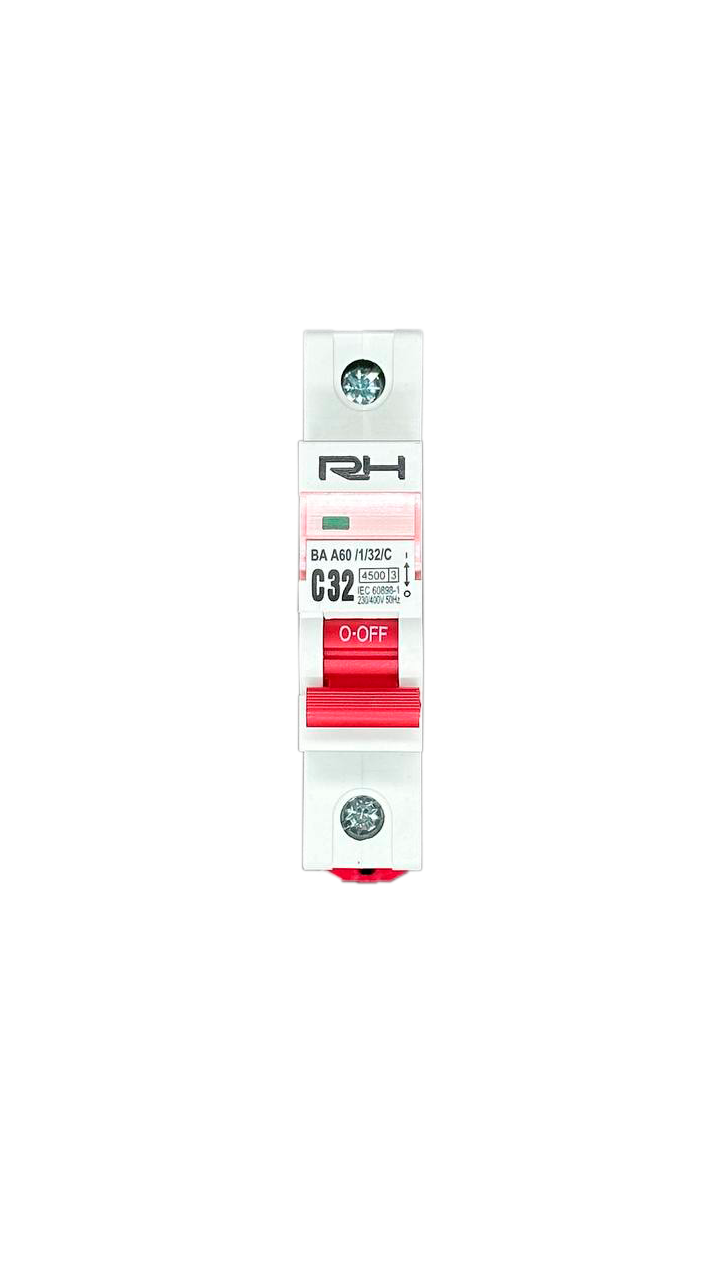

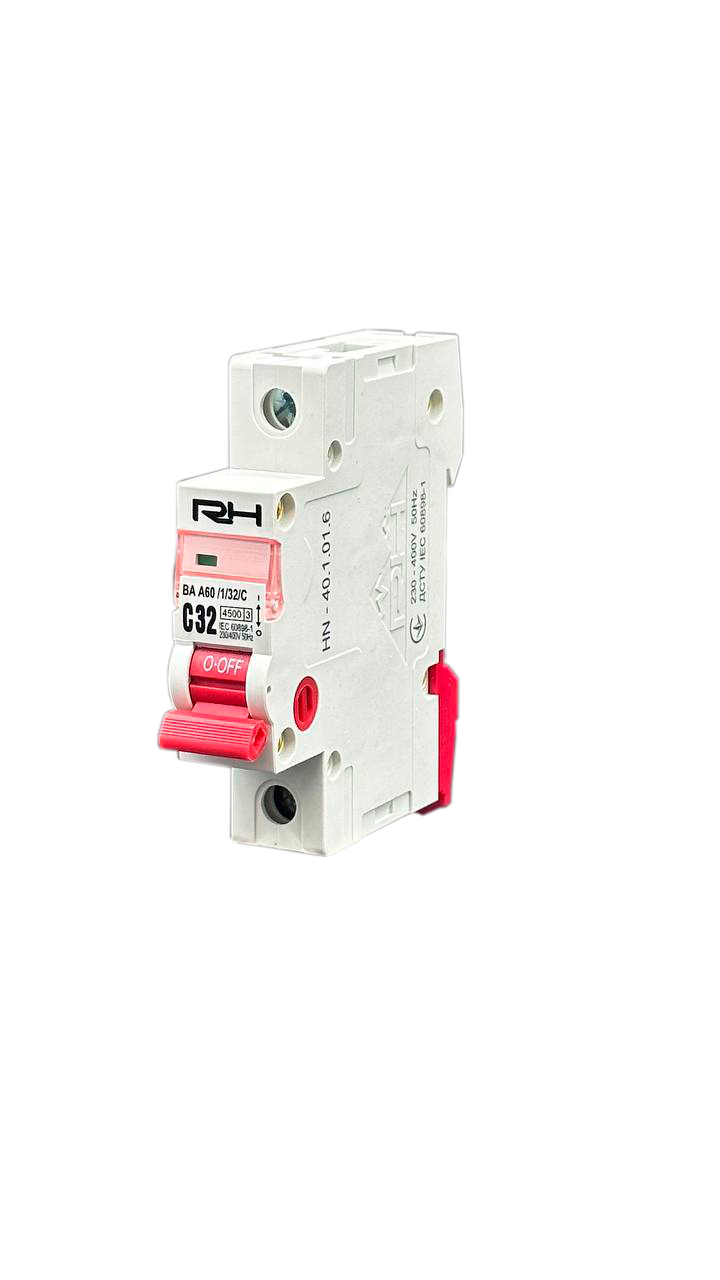

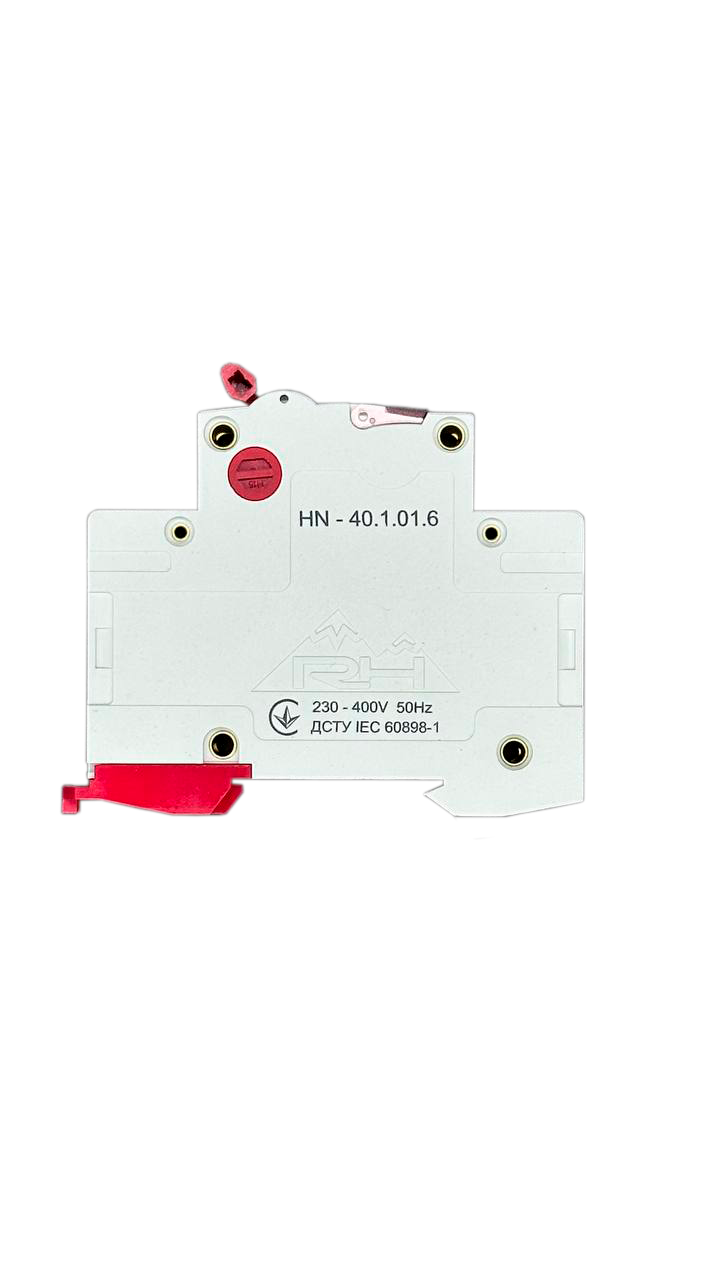

Automatic switch RH 1P "C" 32A HN-401016

Nominal current In - 32 A;
Nominal operating voltage Ue - 230-400 V;
Nominal frequency f - 50 Hz;
Nominal insulation voltage Ui - 500 V;
Nominal impulse voltage Uimp - 4000 V;
Number of poles - 1;
Disconnection characteristic - C;
Nominal breaking capacity Icn - 4500 A;
Electrical wear resistance - 10,000 cycles;
Mechanical wear resistance - 20,000 cycles;
The maximum cross-section of the cable for connection is 16 mm2;
Degree of dust protection - IP20;
Degree of environmental pollution - 2;
Temperature coefficient - 1.02%;
Working temperature - (-10 +40) ⁰С.
